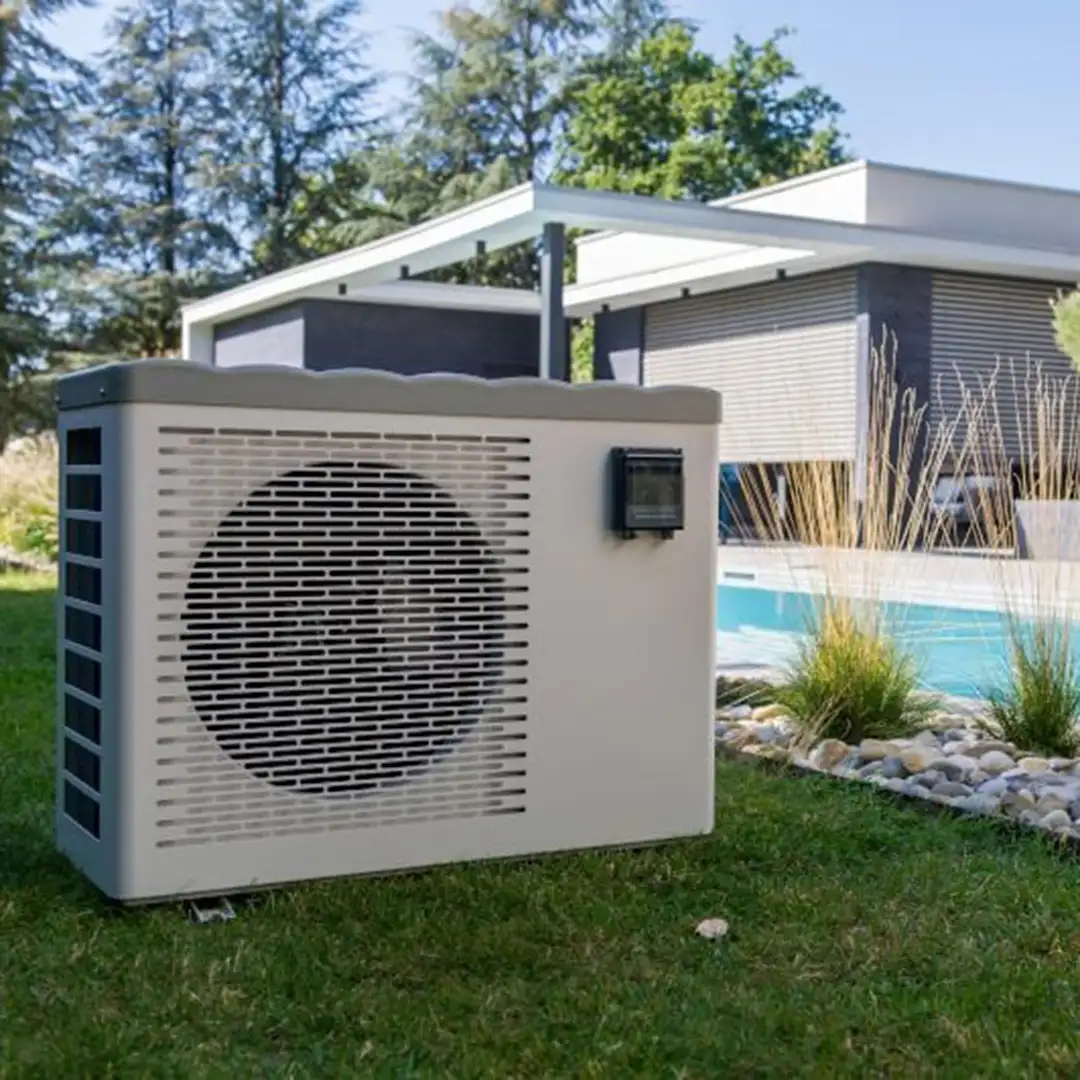

AstralPool Eco Elyo 30T Pool Heat Pump

AstralPool Eco Elyo 30T Pool Heat Pump

The AstralPool Eco Elyo 30T Pool Heat Pump is a powerful heating solution designed for medium and large swimming pools, featuring Full Inverter technology, high energy efficiency, and advanced remote control capabilities. Suitable for both professional and residential use, this model provides precise water temperature control, ensuring comfort and an extended swimming season.

Full Inverter Technology – High Efficiency & Quiet Operation

Thanks to its full inverter architecture, which adjusts compressor and fan motor speeds according to demand, the Eco Elyo 30T delivers:

• Minimum energy consumption,
• Low noise levels,
• Extended equipment lifespan.

3 Operating Modes

• Boost Mode: Rapid heating at the beginning of the season.
• Smart Mode: Automatic power adjustment based on water temperature.
• EcoSilence Mode: Quieter and more economical operation.

Efficient Operation Even at -5°C

The AstralPool Eco Elyo 30T maintains stable and efficient performance even in low outdoor temperatures, operating reliably down to -5°C without loss of efficiency, helping to significantly extend the swimming season.

Full Remote Control via Bluetooth & Wi-Fi

The Eco Elyo 30T comes with built-in Bluetooth and Wi-Fi connectivity. Through the Fluidra Pool application, users can:

• Adjust temperature settings,
• Switch between operating modes,
• Monitor real-time performance and energy consumption,
• Control the unit remotely 24/7.

AstralPool Eco Elyo 30T – General Features

• Full Inverter technology for maximum energy savings
• Operational capability down to -5°C outdoor temperature
• Suitable for covered or enclosed pools up to 120 m³ (project-based calculation required)
• Horizontal air discharge design
• ABS top panel with galvanized steel casing
• Heating priority mode (filtration pump control)
• Integrated timer function
• Advanced automatic defrost system
• Titanium condenser fully compatible with salt chlorination systems
• Rotary compressor
• LCD control panel

Included Accessories

• Winter protection cover
• Condensate drainage kit
• 2 × PVC Ø50 connection adapters
• 4 × anti-vibration feet

Installation Requirements

• The unit must be installed outdoors on a concrete or solid surface.
• A minimum clearance of 50 cm must be left at the sides and rear.
• A minimum open space of 4 meters is required at the front.
• Maximum horizontal piping distance: 5 meters
• Maximum vertical distance to the filtration pump: 2 meters
• A filtration pump with at least ¾ HP power is required.

AstralPool Eco Elyo 30T is a professional-grade heat pump that can be safely used for many years in large-volume pools, offering Full Inverter technology, advanced remote control capabilities, and high heating efficiency.
